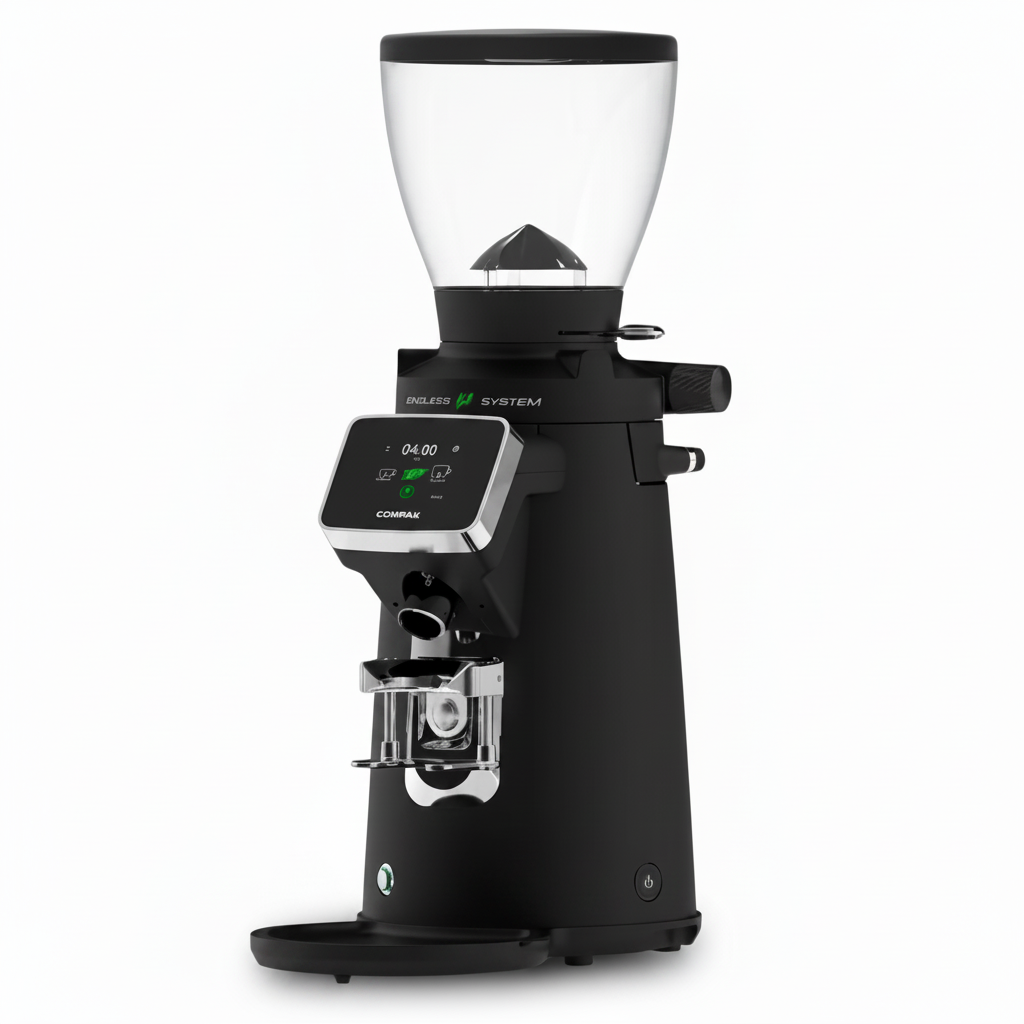

Compak F8 OD Lock and Load Coffee Grinder

COMPAK F8 OD LOCK & LOAD COFFEE GRINDER

The F8 OD Lock & Load is a heavy-duty commercial espresso grinder designed for high-volume environments that demand uncompromising precision. It utilises the proprietary Lock Load System, allowing for immediate, tool-free access to the grinding chamber for cleaning or burr replacement without disturbing the precise grind calibration. By pairing massive 83mm hardened steel K110 flat burrs with a high-precision endless micrometric worm gear, the F8 OD delivers an exceptional grind consistency and increased throughput, making it the ideal choice for busy cafes requiring professional-grade extraction and maximum efficiency.

FEATURES

Lock Load System for tool-free, instant access to the grinding chamber.
83mm hardened steel K110 flat burrs (1,200 kg durability*) with optional Red Speed burrs available.
High-precision endless micrometric adjustment driven by a precise worm gear system.
LED-illuminated coffee outlet for enhanced visibility and precision.
2.8" TFT multilanguage touchscreen with password-protected menu access.
Integrated dose counter for both absolute and relative measurements.
Height and depth adjustable portafilter fork for hands-free operation.
Front-mounted refill button for streamlined workflow.
Built-in wear and burr-change alarm system.
Motor equipped with integrated fan.
Optional portafilter detector.

SPECS

Height: 617 mm
Width: 230 mm
Depth: 385 mm
Net Weight: 15.36 kg
Hopper Capacity: 1,250 g
Burr Size: 83 mm (Flat)
Burr Material: Hardened Steel K110
Motor Output: 630 W
Motor Speed: 1,310 RPM
Average Output: 4.2 g/s
Voltage: 230 V / 50 Hz
Display: 2.8" TFT Touchscreen

Note: *Production and durability based on a medium roast coffee and grinding point for Espresso. There is a direct relation between the wear of the burrs and the increase in time per dose.
