Compak F6 OD Lock and Load Coffee Grinder

COMPAK F6 OD LOCK & LOAD COFFEE GRINDER

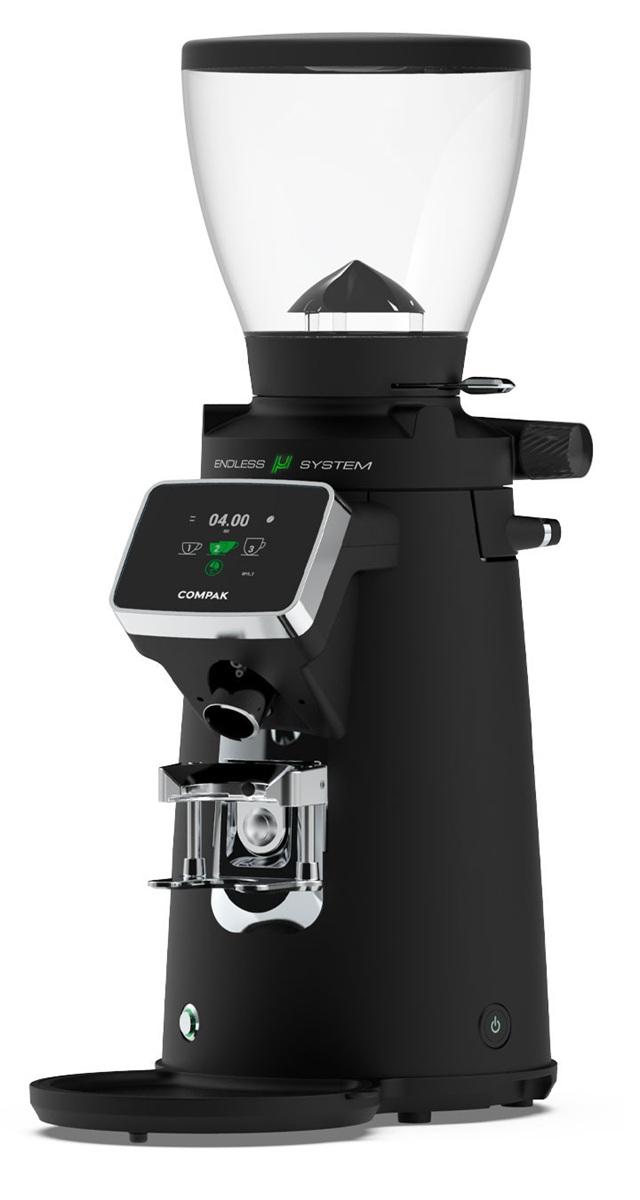

The F6 OD Lock & Load is a high-performance commercial espresso grinder engineered for precision and rapid maintenance. It features the proprietary Lock Load System, enabling technicians to access the grinding chamber for cleaning or burr replacement instantly without the use of tools and without losing the established grind size. Equipped with 64mm hardened steel K110 flat burrs and a high-precision endless micrometric worm gear adjustment system, the F6 OD ensures complete control over extraction and minimal particle variance for professional espresso results.

FEATURES

Lock Load System for tool-free, instant access to the grinding chamber.

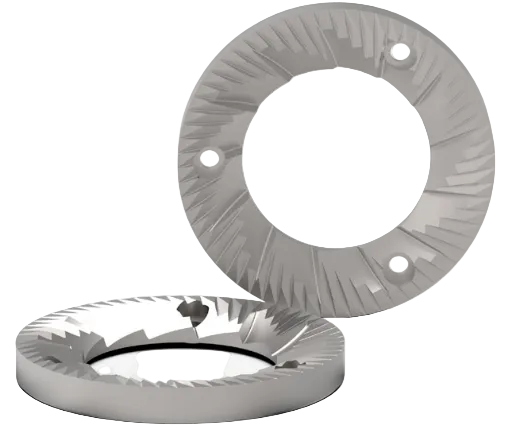

64mm hardened steel K110 flat burrs (600 kg durability*) with optional Red Speed burrs available.
High-precision endless micrometric adjustment driven by a precise worm gear system.
LED-illuminated coffee outlet for enhanced visibility and precision.
2.8" TFT multilanguage touchscreen with password-protected menu access.
Integrated dose counter for both absolute and relative measurements.
Height and depth adjustable portafilter fork for hands-free operation.
Front-mounted refill button for streamlined workflow.
Built-in wear and burr-change alarm system.
Motor equipped with integrated fan (optional rear fan available).
Optional portafilter detector.

SPECS

Height: 617 mm
Width: 230 mm
Depth: 385 mm
Net Weight: 15.36 kg
Hopper Capacity: 1,250 g
Burr Size: 64 mm (Flat)
Burr Material: Hardened Steel K110
Motor Output: 630 W
Motor Speed: 1,290 RPM
Average Output: 2.8 g/s
Voltage: 230 V / 50 Hz
Display: 2.8" TFT Touchscreen

Note: *Production and durability based on a medium roast coffee and grinding point for Espresso. There is a direct relation between the wear of the burrs and the increase in time per dose.
